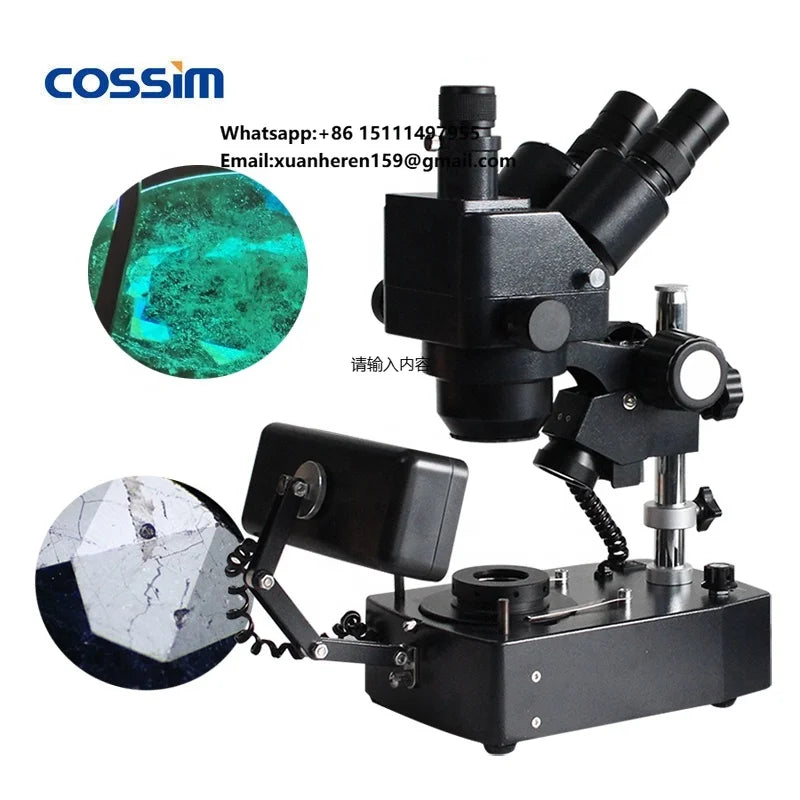

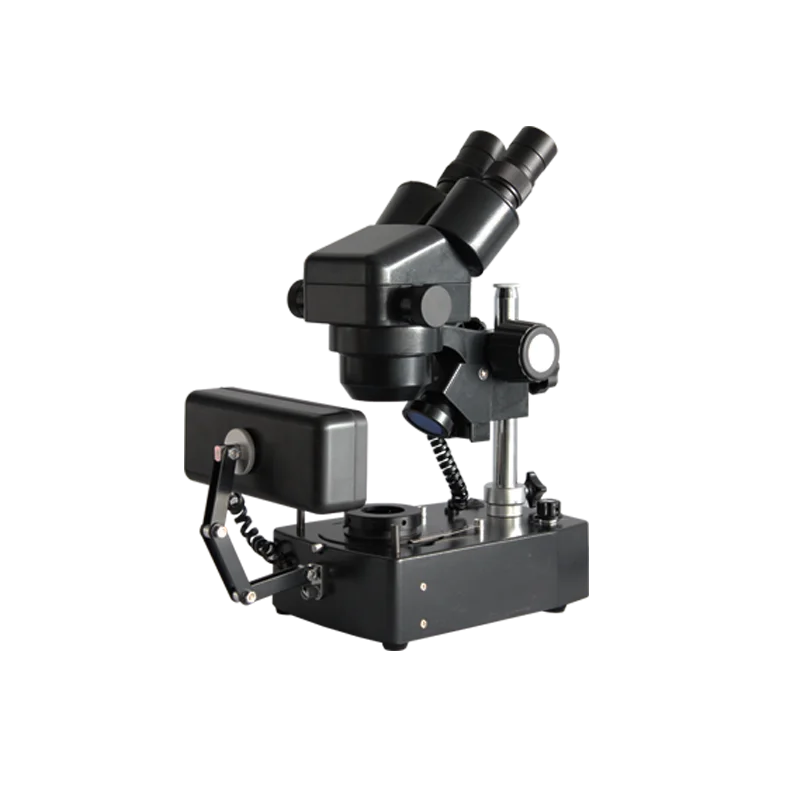

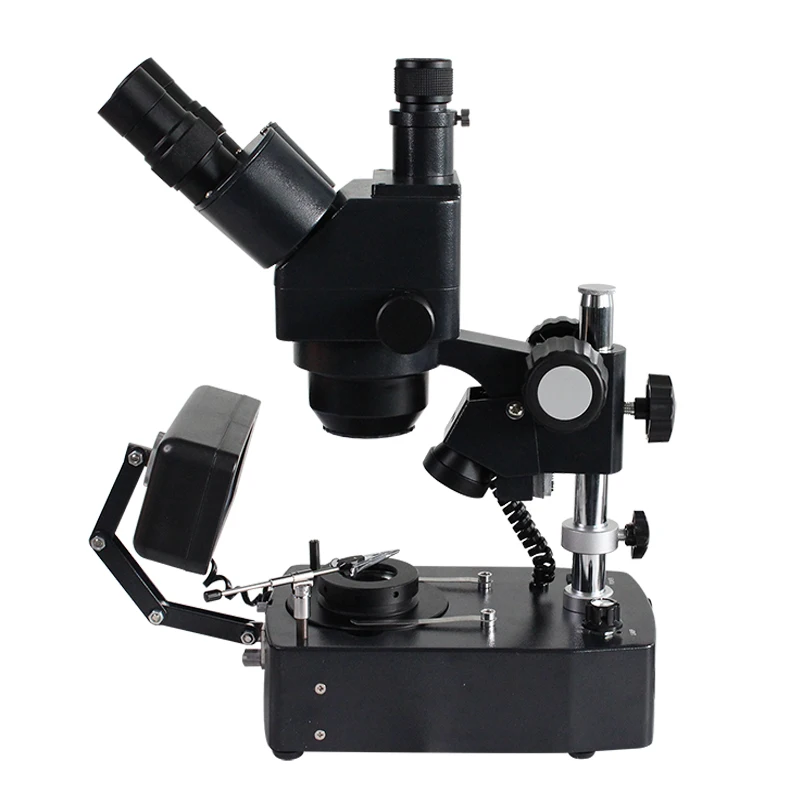

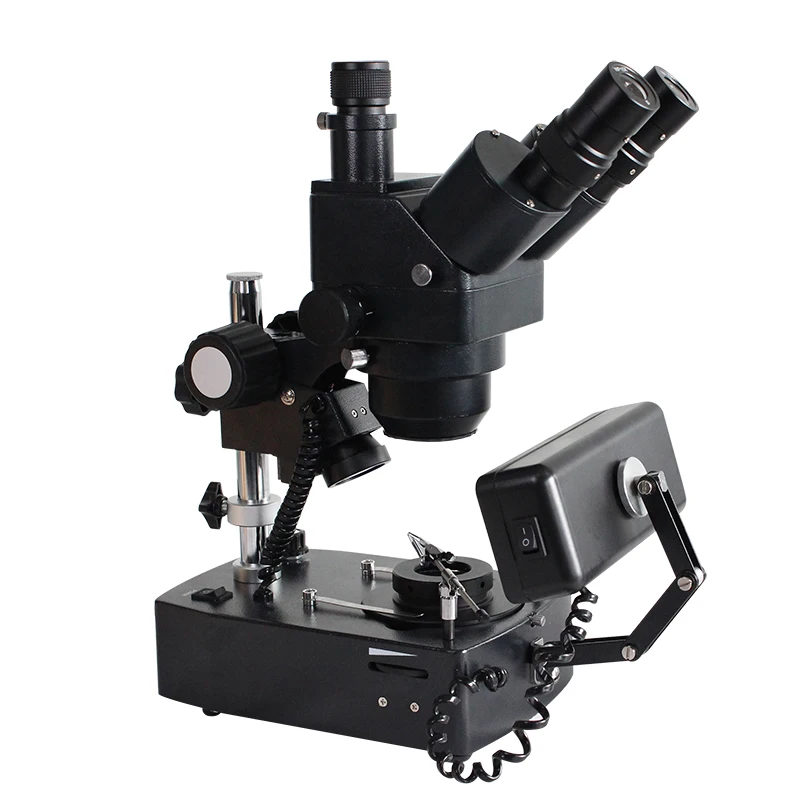

VGM400 Gem & Jewelry Binocular Microscope — 10x–160x

VGM400 Series Gemological Microscope can observe the jewelry and stores which has different sizes. The steel of gem clip is moderate, firm and convenient, because the light shielding around the waist of the gem is low, you can observe the gem in all aspects.

It also adopts excellent optical system with clarity image, 3D effect and large magnification, appropriate design offers easy and comfortable operation, improving the effectiveness.

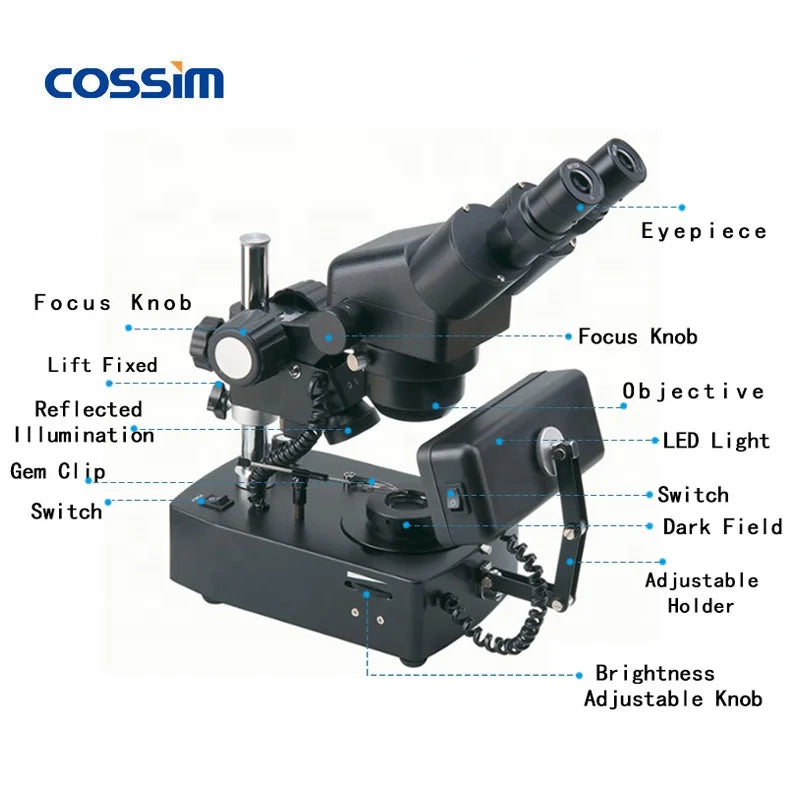

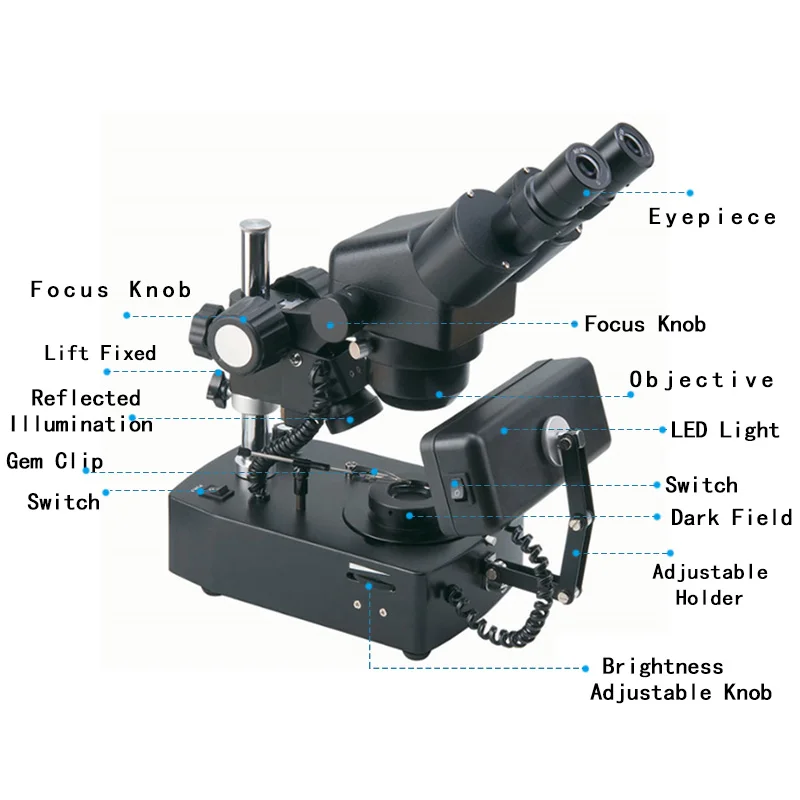

1X-4X continuous zoom objective, which fully meet the requirements of observing the intrinsic and surface characteristics of the sample. Superior optical system provides not only high clarity, high contrast, and high-resolution images, but also large depth of field.

Eyepieces High-eyepoint plan eyepiece, which providing more comfortable operation and making sure the clear and clarity images.

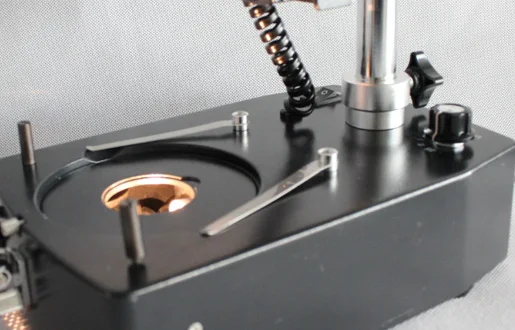

Gem Clip Professional Gem Clip, Rotate Freely, More Easy and Safe

Reflected Illumination 10W daylight top lamp, color temperature meets the requirement of diamond grading lighting

Side Illumination It offer light illumination from all aspects

Transmitted Illumination 10W super bright adjustable halogen light

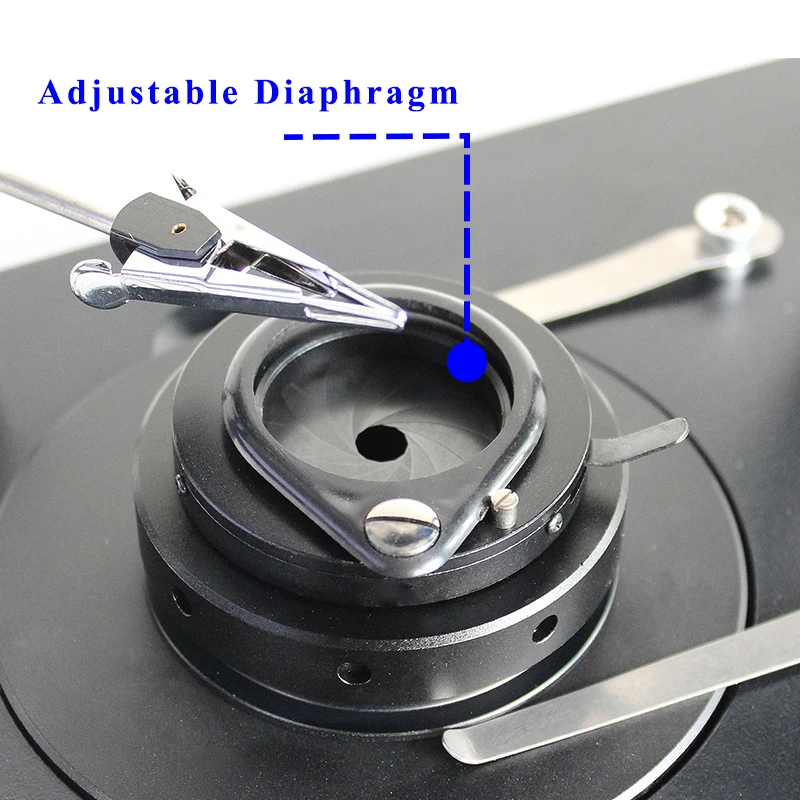

Dark Field & Bright Field can be switched freely.

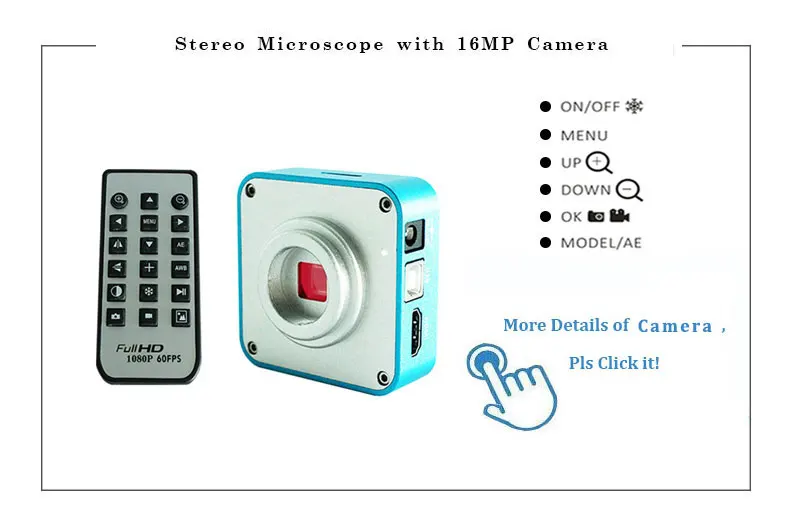

16MP High Resolution HDMI-compatible & USB2.0 Interface, It's easy to observe, edit and save the images directly.

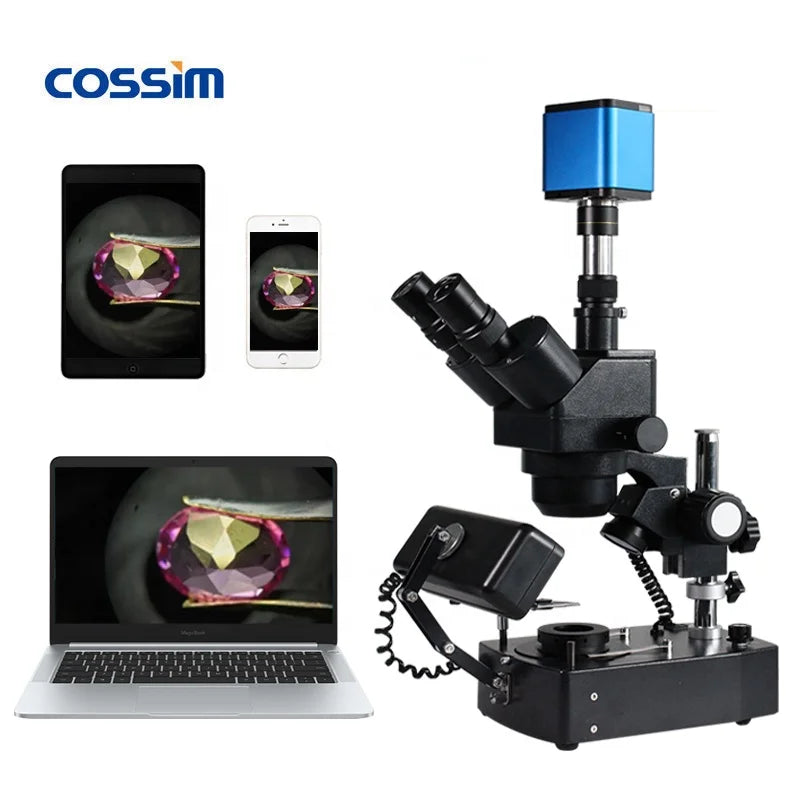

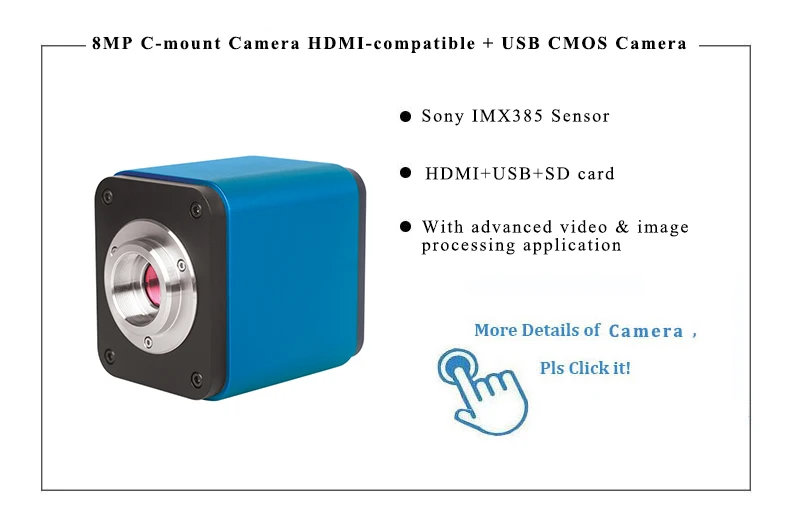

1080P High Resolution SONY HDMI-compatible & USB2.0 & SD Card Interface, With advanced video & image processing application.

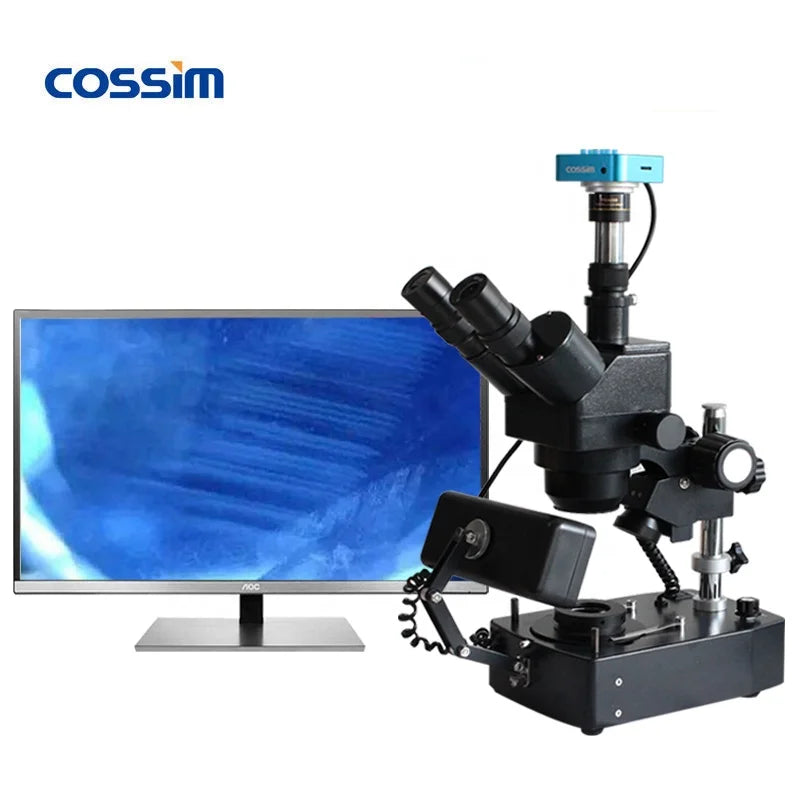

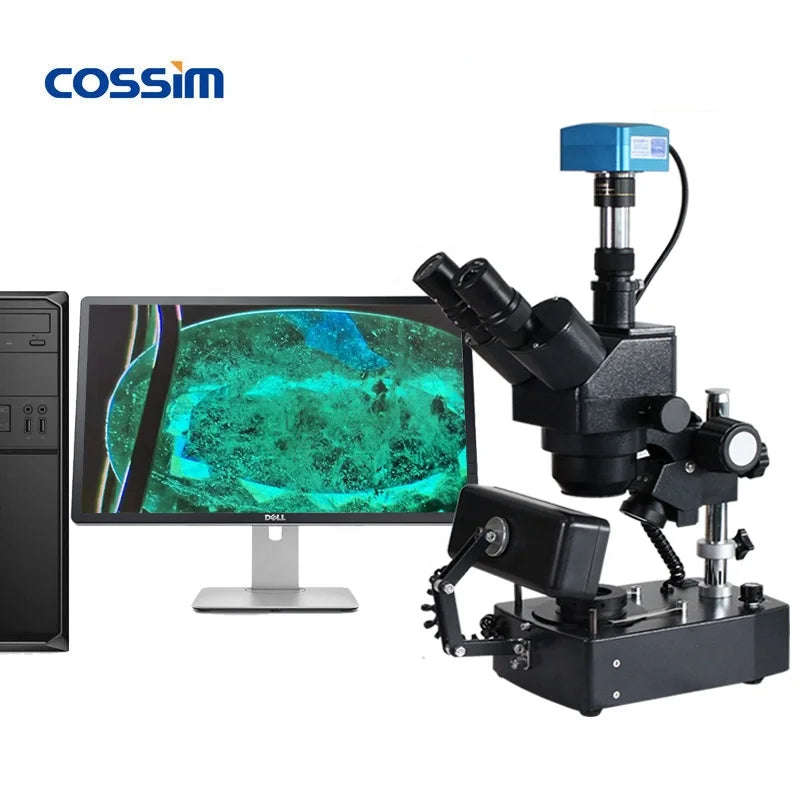

3MP~14MP Aptina CMOS Camera, High Resolution, USB3.0 Output Interface, With advanced video & image processing application.

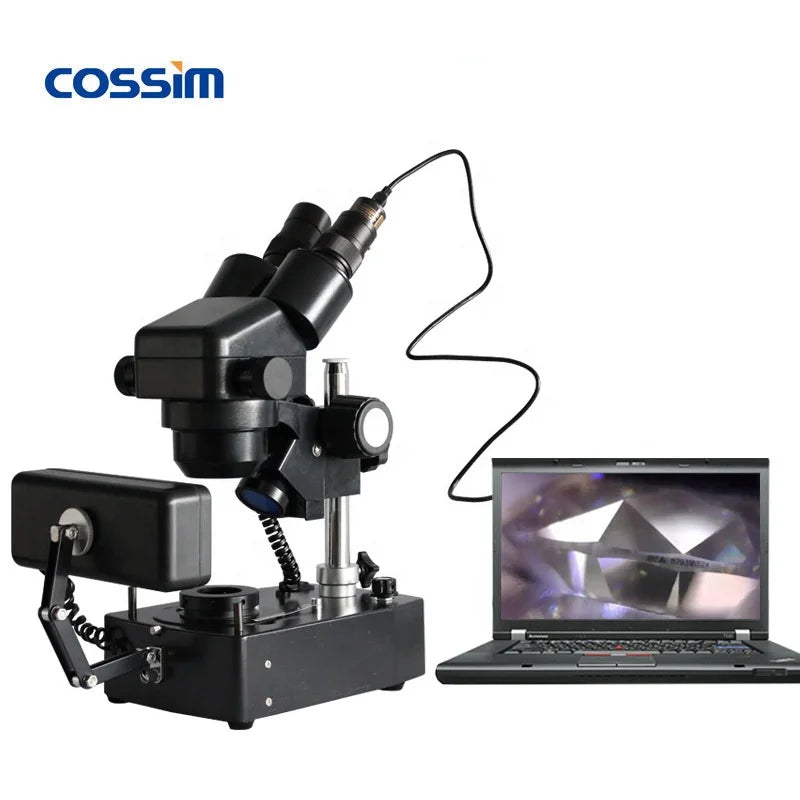

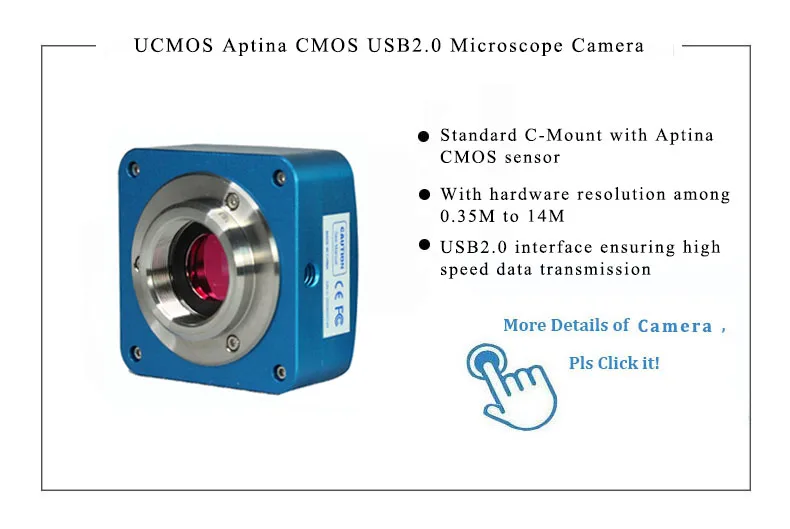

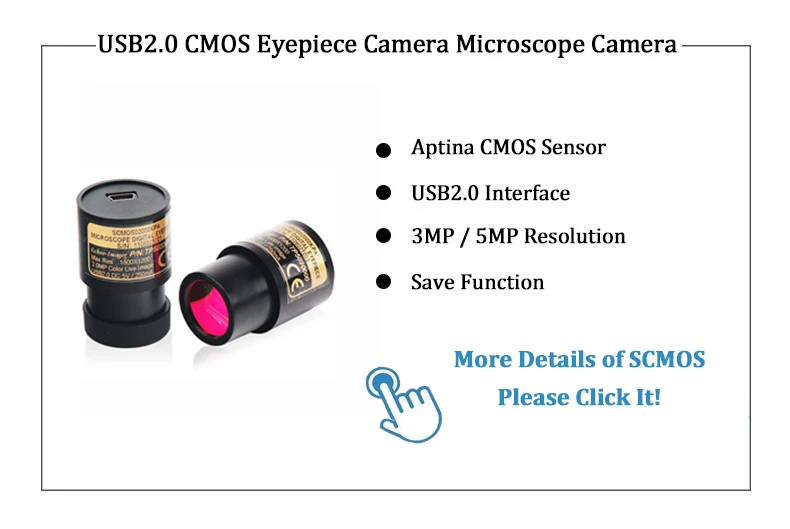

3MP/5MP USB2.0 Interface, adopts with Aptina CMOS Sensor, With advanced video & image processing application.

Product Application

Identified the surface characteristics of the sample: gem’s growth striation, etch fugure, scratch, damage, symmetry, split surface (bubble, gloss difference) etc.Observe the intrinsic characteristics of the sample: inclusions’ type, shape and quantity, double crystal surface, growth striation, color distribution characteristics, initial cleavage, defect etc.Observe the doubling of facet edge: the doubling of facet edge of the gems with high birefringence, such as zircon(DR=0.059), olivine (DR=0.036) and tourmaline (DR=0.078).
